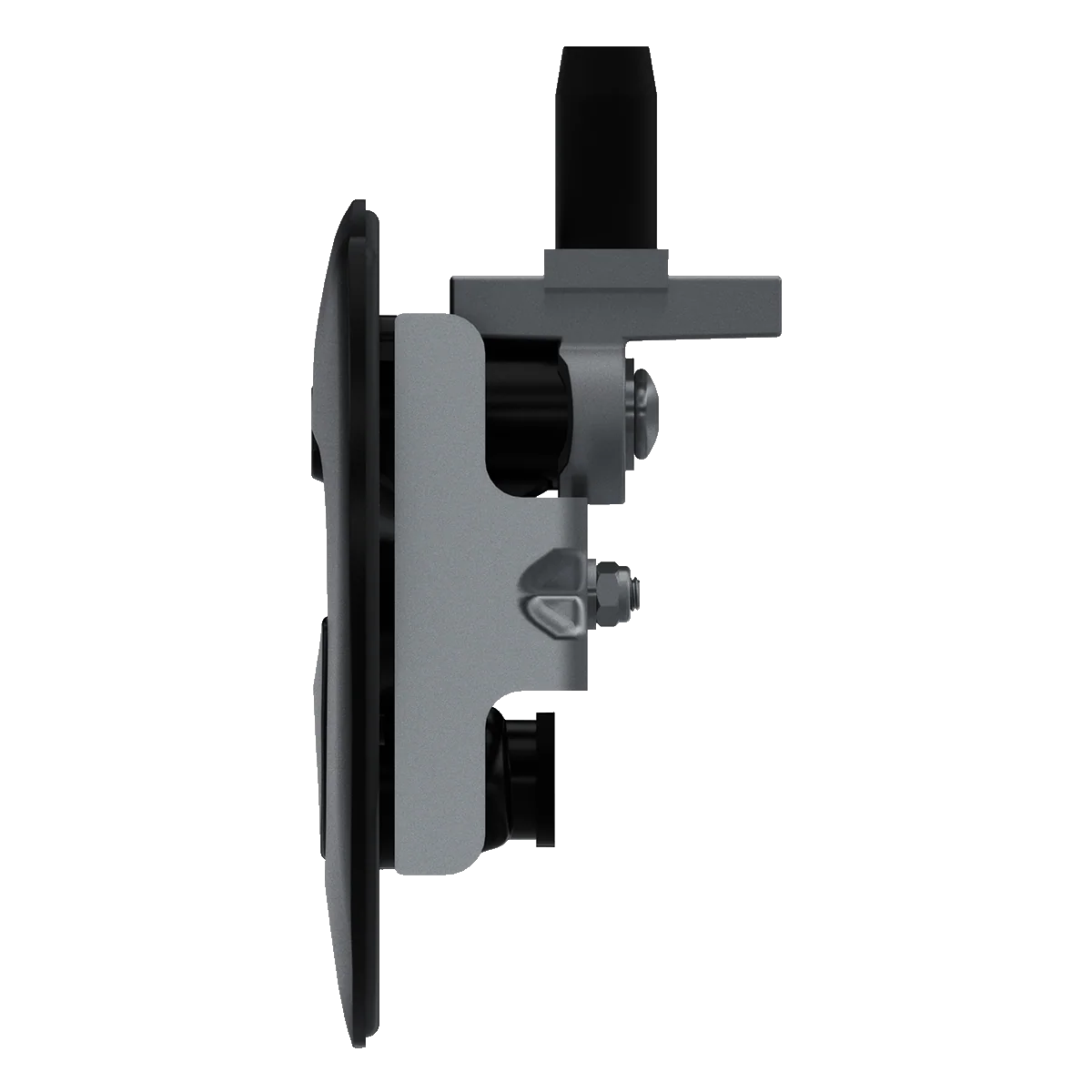

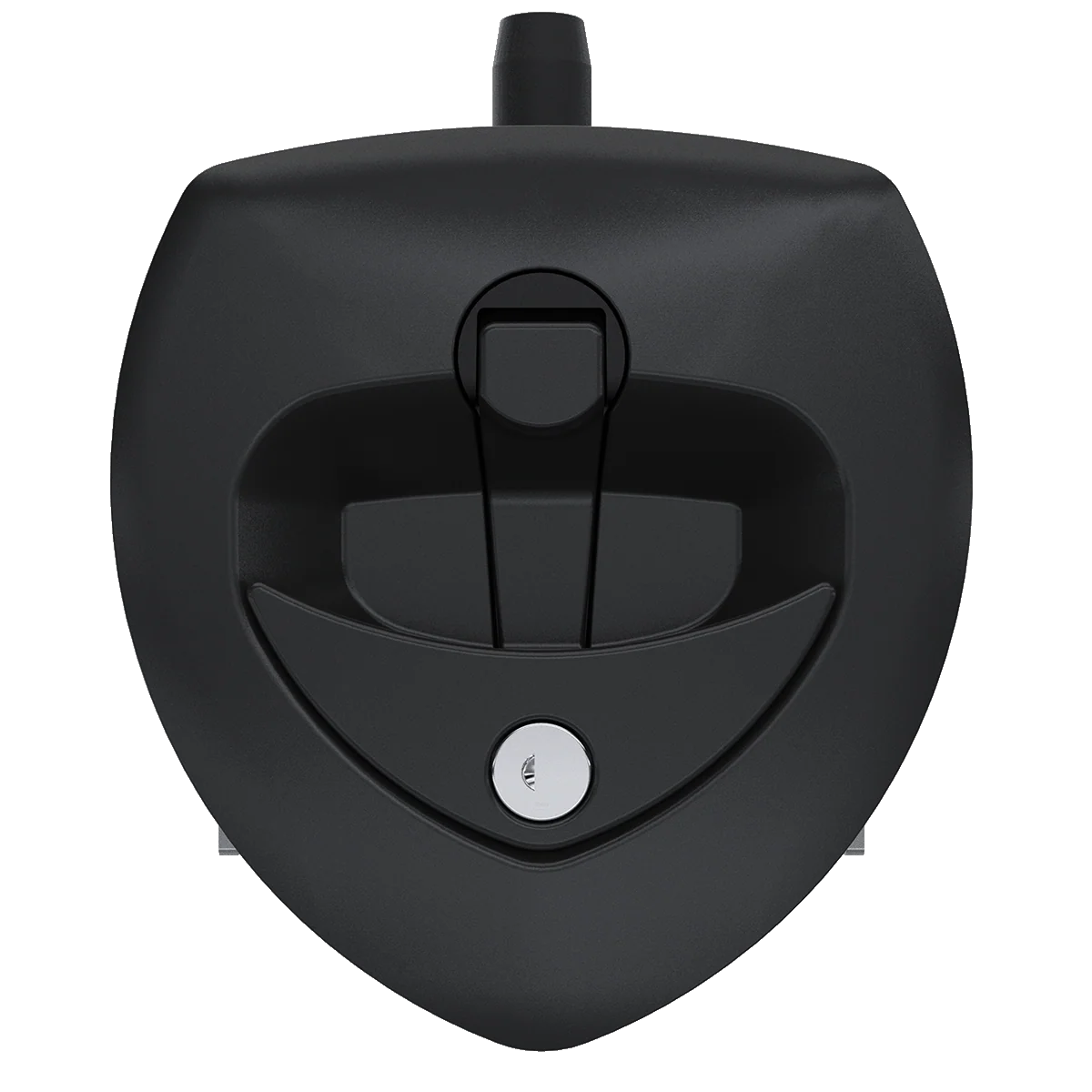

Southco Flush Mount Curved Lift-and-Turn Compression T-Handle Latch with key lock, Black
- Provides lift and turn compression latching for enclosure doors and access panels, delivering firm pull-up action with a flush folding T-handle that stays recessed when closed for a clean exterior profile
- Well suited for industrial equipment, outdoor cabinets, service panels, and other enclosures where users need fast manual access, glove-friendly operation, and improved resistance to dust, water, and vibration.
- Features a key-locking configuration, an adjustable grip range, universal 180-degree rotation, a compact package, 4.0 mm compression travel, and a folding ergonomic T-handle for easy operation in tight spaces. Supplied with 2 Southco CH751 keys

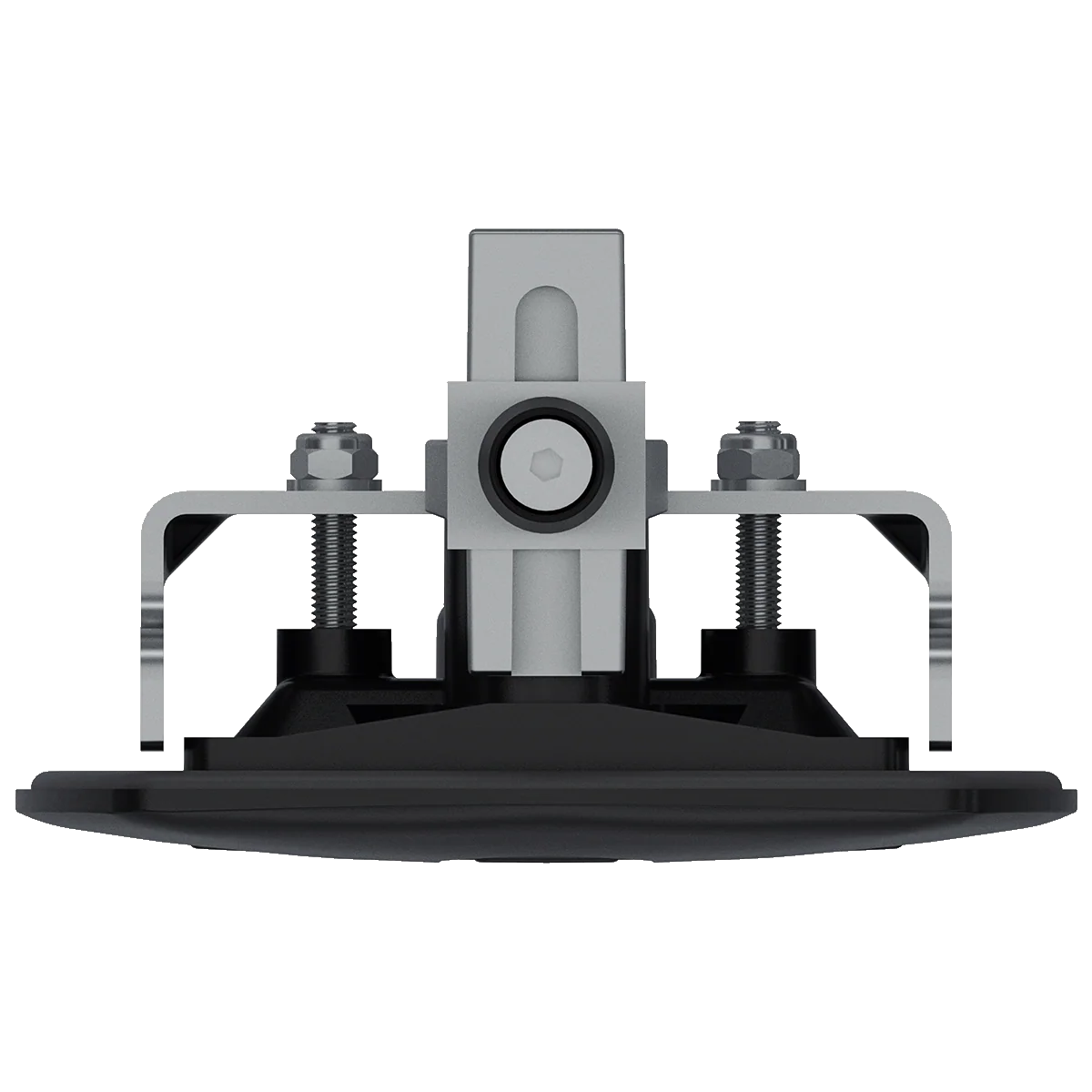

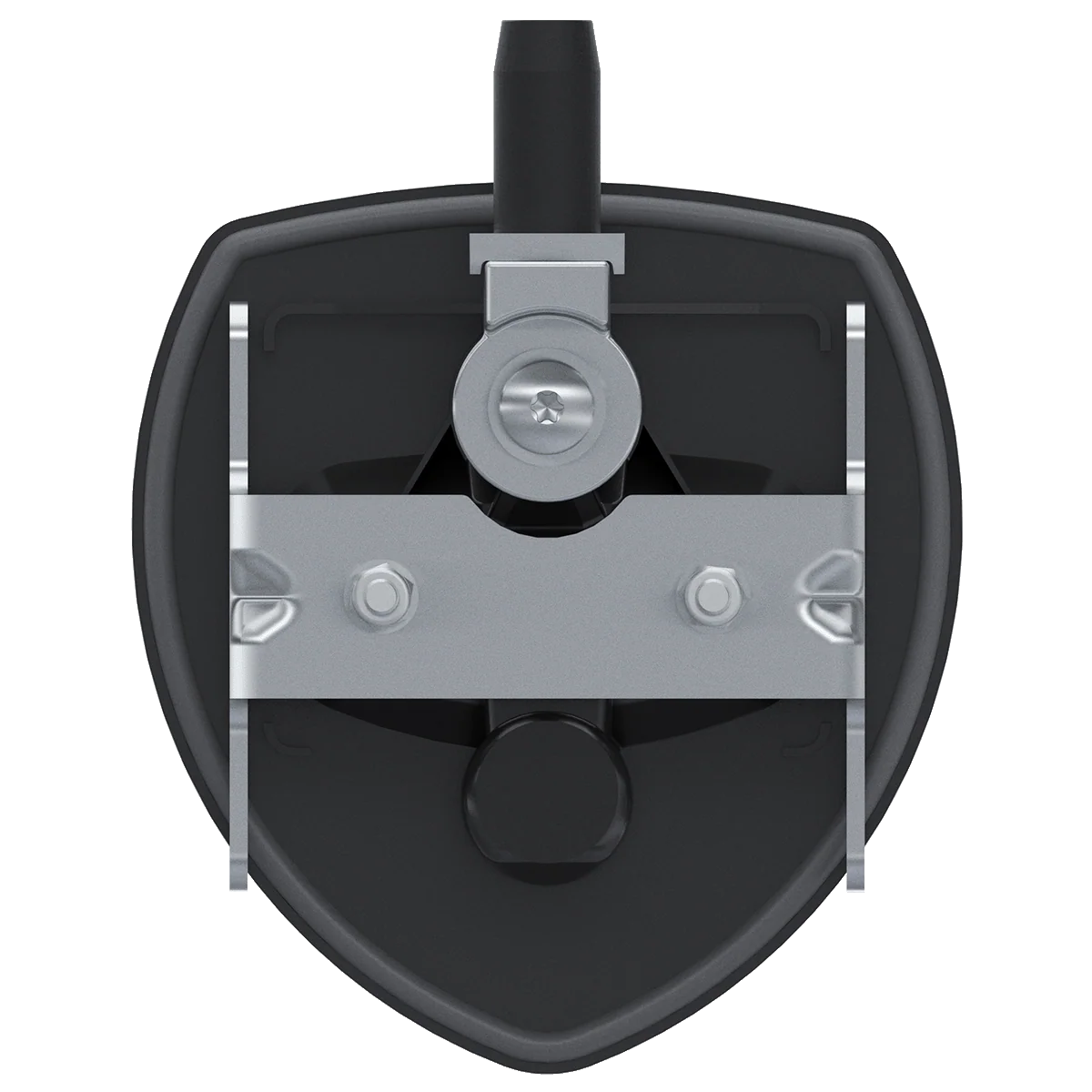

- Built with a black plastic cup and a zinc alloy handle with polished plated finish. The N5 product class also uses a mounting bracket, stud, nut, washer, guide screw, cam guide, and roller cam assembly
- The N5 class is rated for up to 1000 N static load and is designed for NEMA 4 / IP65 sealing compliance in the proper application, helping protect internal components while preserving a low-profile exterior.
$11.27
Original: $37.58
-70%Southco Flush Mount Curved Lift-and-Turn Compression T-Handle Latch with key lock, Blackâ
$37.58
$11.27Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Provides lift and turn compression latching for enclosure doors and access panels, delivering firm pull-up action with a flush folding T-handle that stays recessed when closed for a clean exterior profile
- Well suited for industrial equipment, outdoor cabinets, service panels, and other enclosures where users need fast manual access, glove-friendly operation, and improved resistance to dust, water, and vibration.
- Features a key-locking configuration, an adjustable grip range, universal 180-degree rotation, a compact package, 4.0 mm compression travel, and a folding ergonomic T-handle for easy operation in tight spaces. Supplied with 2 Southco CH751 keys
- Built with a black plastic cup and a zinc alloy handle with polished plated finish. The N5 product class also uses a mounting bracket, stud, nut, washer, guide screw, cam guide, and roller cam assembly
- The N5 class is rated for up to 1000 N static load and is designed for NEMA 4 / IP65 sealing compliance in the proper application, helping protect internal components while preserving a low-profile exterior.
